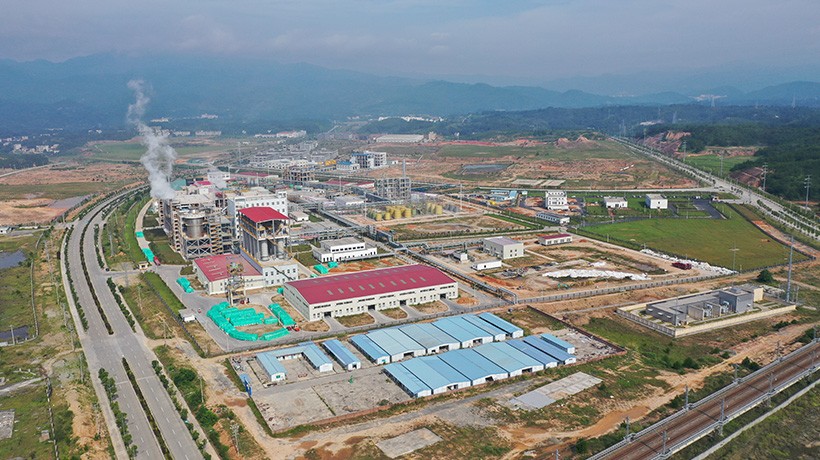

The project is located in Changting County Rare Earth Industrial Park, which is a key investment project of PetroChina. Jiarong Technology is responsible for the project's high salinity wastewater membrane concentration system equipment turnkey services, processing gel wastewater 120m³/h, microsphere wastewater 30m³/h, the process adopts UF+DTRO and other advanced membrane technology, the produced water is directly reused, and the concentrate is evaporated and dried for treatment.
Treatment capacity: gel wastewater 120m³/h, microsphere wastewater 30m³/h

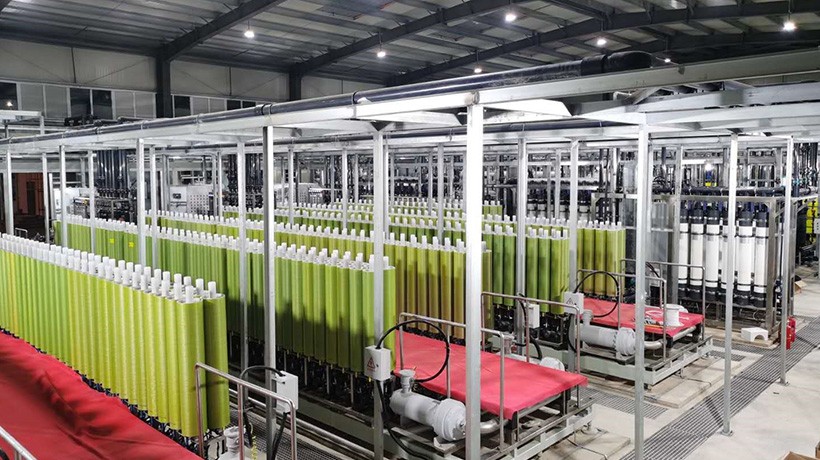

Process: deamination + pretreatment + chemical softening + multi-media filter + resin softening + UF + single-stage DT + evaporation
Raw water TDS: 38000-40000mg/L
System recovery rate: 60-70%
Concentrate TDS: 95000-100000mg/L
Desalination rate: 95%
Operating pressure: 60-80 bar
